Jaeger (self-managed)¶
Warning
This page provides a starting point for installing an application. The information is useful, but not kept up-to-date. If you struggle, contact Elastisys Consulting.
This page describes how to install a Customer Application
You are solely responsible for Customer Applications.
If you are an Elastisys Managed Services customer, please review your responsibilities in ToS 5.2.
Specifically, you are responsible for performing due diligence for the project discussed in this page. At the very least, you must:
- assess project ownership, governance and licensing;
- assess project roadmap and future suitability;
- assess project compatibility with your use-case;
- assess business continuity, i.e., what will you do if the project is abandoned;
- subscribe to security advisories related to the project;
- apply security patches and updates, as needed;
- regularly test disaster recovery.
This page is a preview for self-managed cluster-wide resources
Welkin restricts Application Developers to manage CustomResourceDefinitions (CRDs) and other cluster-wide resources for security purposes. This means that some applications that require such cluster-wide resources are not possible to install for you as an Application Developer. As a trade-off, we are launching this preview feature that allows for self-management of specific cluster-wide resources required for certain popular applications. It is disabled by default, so please ask your Platform Administrator to enable this preview feature.
For Welkin Managed Customers
You can ask for this feature to be enabled by filing a service ticket. This is a preview feature. For more information, please read ToS 9.1 Preview Features.
Important
This feature is only available on Welkin Apps versions v0.50.0 and newer.
This page will help you install Jaeger with OpenSearch as a storage backend, and generate some traces to verify that everything is working. This guide is meant as a complement to the official documentation of the Jaeger Operator, OpenSearch and OpenSearch Dashboards, which you can refer to for further configuration based on your needs.
Enable Self-Managed Jaeger¶
Following the guide requires the self-managed Cluster resources feature to be enabled. You can contact your Platform Administrator to have this feature enabled.
Deploy¶
This section will guide you through deploying all components with a minimal working configuration. Everything must be deployed in a namespace called jaeger. You can create this namespace under your parent namespace using the following snippet:
kubectl apply -f - <<EOF
apiVersion: hnc.x-k8s.io/v1alpha2
kind: SubnamespaceAnchor
metadata:
name: jaeger
namespace: <parent-namespace>
EOF
Configure and Deploy OpenSearch¶
Supported versions
This installation guide has been tested with OpenSearch version 2.34.0.
Start by generating a strong password that will be used as the initial admin password for OpenSearch. The password needs to be a minimum of 8 characters long and must contain at least one uppercase letter, one lowercase letter, one digit, and one special character that is strong.
Then create a Secret containing this password:
kubectl apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
name: opensearch-credentials
namespace: jaeger
type: Opaque
stringData:
ES_PASSWORD: <your-strong-password>
ES_USERNAME: admin
EOF
Add the OpenSearch Helm repository:
helm repo add opensearch https://opensearch-project.github.io/helm-charts/
helm repo update
Below is a sample opensearch-values.yaml file for OpenSearch that you can save to your working directory:
config:
opensearch.yml: |-
network.host: 0.0.0.0
action:
auto_create_index: "jaeger*,.opensearch*,.opendistro-*,security-auditlog-*"
resources:
requests:
cpu: 500m
memory: 1Gi
persistence:
imageTag: stable
enableInitChown: false
extraEnvs:
- name: OPENSEARCH_INITIAL_ADMIN_PASSWORD
valueFrom:
secretKeyRef:
name: opensearch-credentials
key: ES_PASSWORD
- name: plugins.security.ssl.http.enabled
value: "false"
- name: plugins.security.allow_default_init_securityindex
value: "true"
Once you are happy with the configuration, you are ready to deploy OpenSearch:
helm upgrade --install opensearch opensearch/opensearch --version 2.34.0 \
-n jaeger \
-f opensearch-values.yaml
Configure and Deploy OpenSearch Dashboards¶
Supported versions
This installation guide has been tested with OpenSearch Dashboards version 2.30.0.
Once OpenSearch is up and running, you are ready to deploy OpenSearch Dashboards. Below is a sample opensearch-dashboards-values.yaml:
opensearchHosts: "http://opensearch-cluster-master.jaeger.svc.cluster.local:9200"
resources:
requests:
cpu: 200m
memory: 300Mi
limits:
cpu: 400m
memory: 600Mi
rbac:
create: false
Deploy OpenSearch Dashboards:
helm upgrade --install opensearch-dashboards opensearch/opensearch-dashboards \
--version 2.30.0 \
-n jaeger \
-f opensearch-dashboards-values.yaml
Configure and Deploy Jaeger Operator¶
Supported versions
This installation guide has been tested with Jaeger Operator version 2.57.0.
Start by adding the Jaeger Helm repository:
helm repo add jaegertracing https://jaegertracing.github.io/helm-charts
helm repo update
Below is a sample jaeger-operator-values.yaml:
extraEnv:
- name: WATCH_NAMESPACE
value: "jaeger"
- name: ES_TAGS_AS_FIELDS_ALL
value: "true"
webhooks:
mutatingWebhook:
create: false
validatingWebhook:
create: false
rbac:
create: false
clusterRole: false
serviceAccount:
name: jaeger-operator
resources:
requests:
cpu: 100m
memory: 128Mi
limits:
cpu: 250m
memory: 256Mi
jaeger:
create: true
spec:
ingress:
enabled: false
strategy: production
collector:
resources:
requests:
cpu: 100m
memory: 200Mi
limits:
cpu: 500m
memory: 512Mi
agent:
resources:
requests:
cpu: 100m
memory: 200Mi
limits:
cpu: 500m
memory: 512Mi
query:
resources:
requests:
cpu: 100m
memory: 200Mi
limits:
cpu: 500m
memory: 512Mi
storage:
dependencies:
enabled: false
type: elasticsearch
secretName: opensearch-credentials
options:
es:
create-index-templates: false
server-urls: http://opensearch-cluster-master:9200
es-provision: false
esIndexCleaner:
enabled: false
Install the Jaeger Operator:
helm upgrade --install jaeger-operator jaegertracing/jaeger-operator \
--version 2.57.0 \
-n jaeger \
-f jaeger-operator-values.yaml
Example Application¶
Once you have deployed everything, you likely want to test that everything is working, and in order to do so you will want to generates some traces. This section will guide you through deploying a demo application to generate some traces, as well as viewing them in OpenSearch Dashboards and the Jaeger UI. Jaeger provides a demo microservice application which we will be using. The snippet below can be used to deploy the demo application:
kubectl apply -f - <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: hotrod
namespace: jaeger
spec:
replicas: 1
selector:
matchLabels:
app: hotrod
template:
metadata:
labels:
app: hotrod
spec:
containers:
- name: hotrod
image: jaegertracing/example-hotrod:1.53
env:
- name: OTEL_EXPORTER_OTLP_ENDPOINT
value: "http://jaeger-operator-jaeger-collector.jaeger.svc.cluster.local:4318"
args:
- "all"
ports:
- containerPort: 8080
resources:
requests:
cpu: "100m"
memory: "128Mi"
limits:
cpu: "250m"
memory: "256Mi"
securityContext:
runAsUser: 1000
---
apiVersion: v1
kind: Service
metadata:
name: hotrod-svc
namespace: jaeger
spec:
selector:
app: hotrod
type: ClusterIP
ports:
- name: http-hotrod
port: 8080
targetPort: 8080
EOF
Once the demo application is up and running, you can start forwarding a local port to it:
kubectl port-forward -n jaeger svc/hotrod-svc 8080:8080
Also forward a local port to the Jaeger UI in a separate terminal:
kubectl port-forward -n jaeger svc/jaeger-operator-jaeger-query 16686:16686

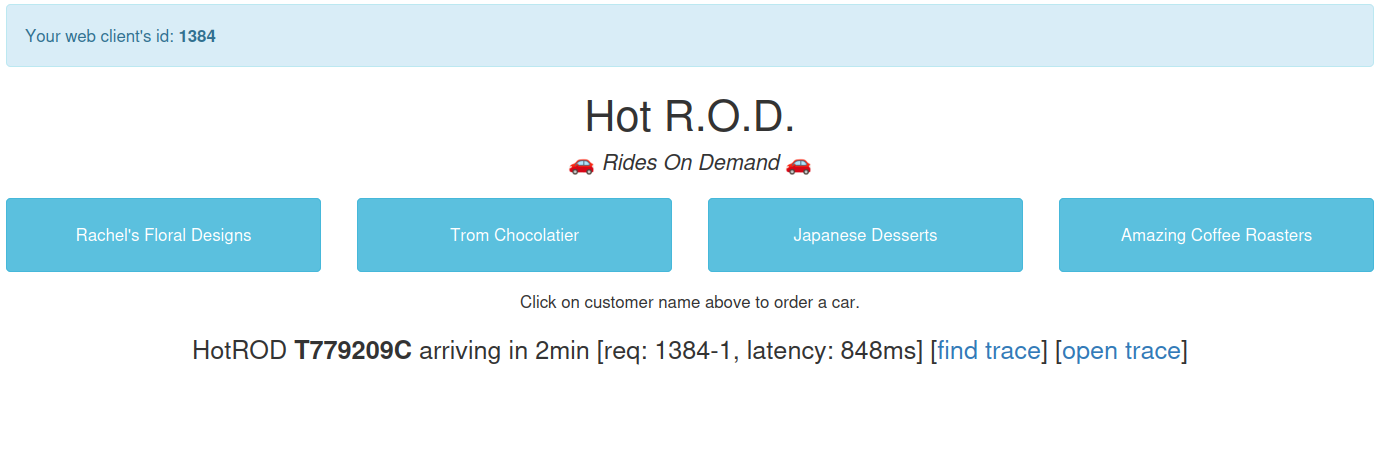

You can now navigate to the demo application UI in your browser at http://localhost:8080/, where you can click on the different buttons to generate traces. See the screenshot below:

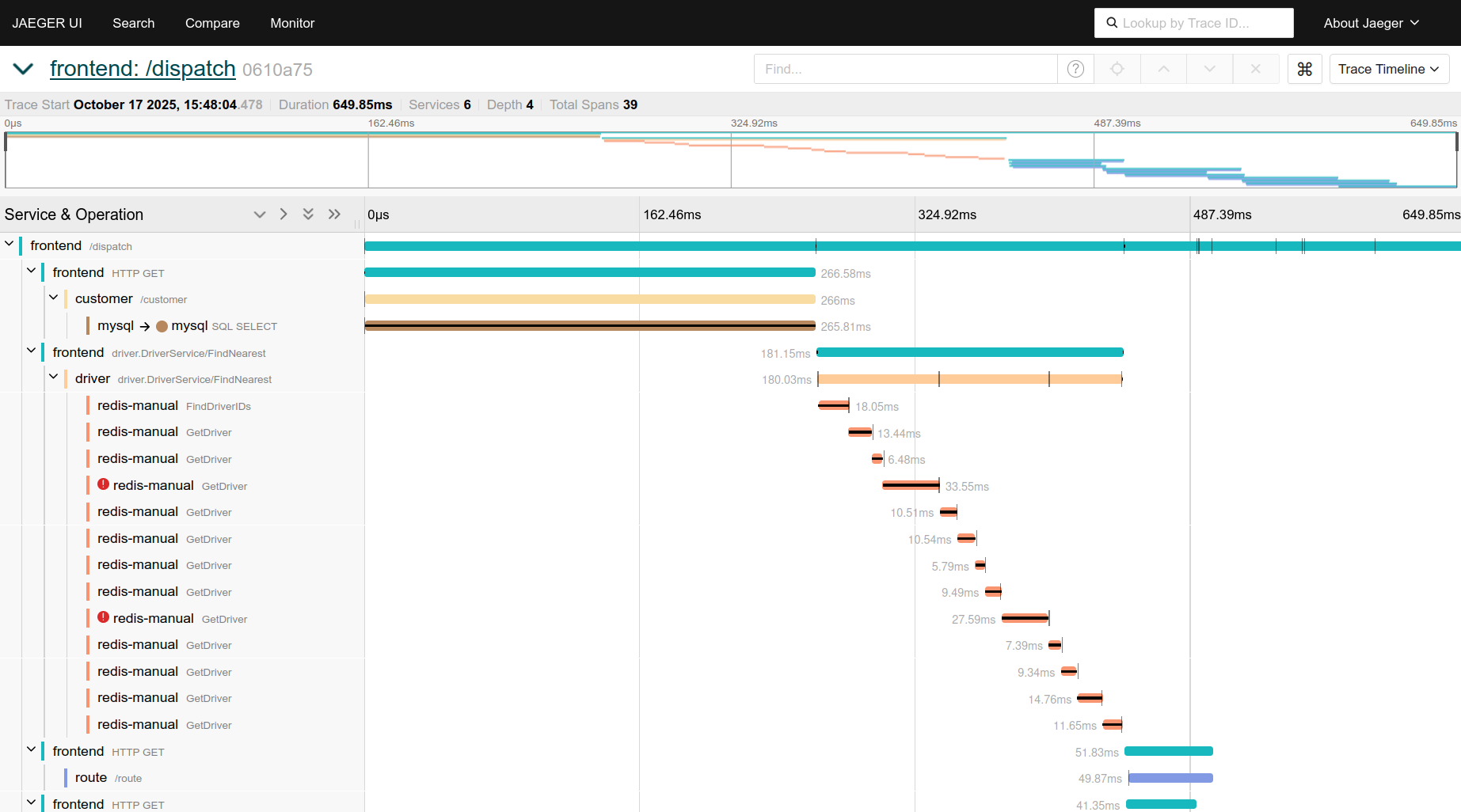

When generating a trace, the UI will output a open trace link which will take you to the trace in the Jaeger UI, where you can view details about it. See the screenshot below:
Afterwards you can close the port-forwards to the demo application and the Jaeger UI.
Now that there have been traces generated, you can also view them in OpenSearch Dashboards. To do so forward a local port to the OpenSearch Dashboards Pod:
kubectl port-forward -n jaeger svc/opensearch-dashboards 5601:5601
Go to OpenSearch Dashboards in your browser by visiting http://localhost:5601. You can log in with the admin user and the password you generated earlier, which is available in the opensearch-credentials secret:
kubectl get secret -n jaeger opensearch-credentials -o jsonpath='{.data.ES_PASSWORD}' | base64 -d

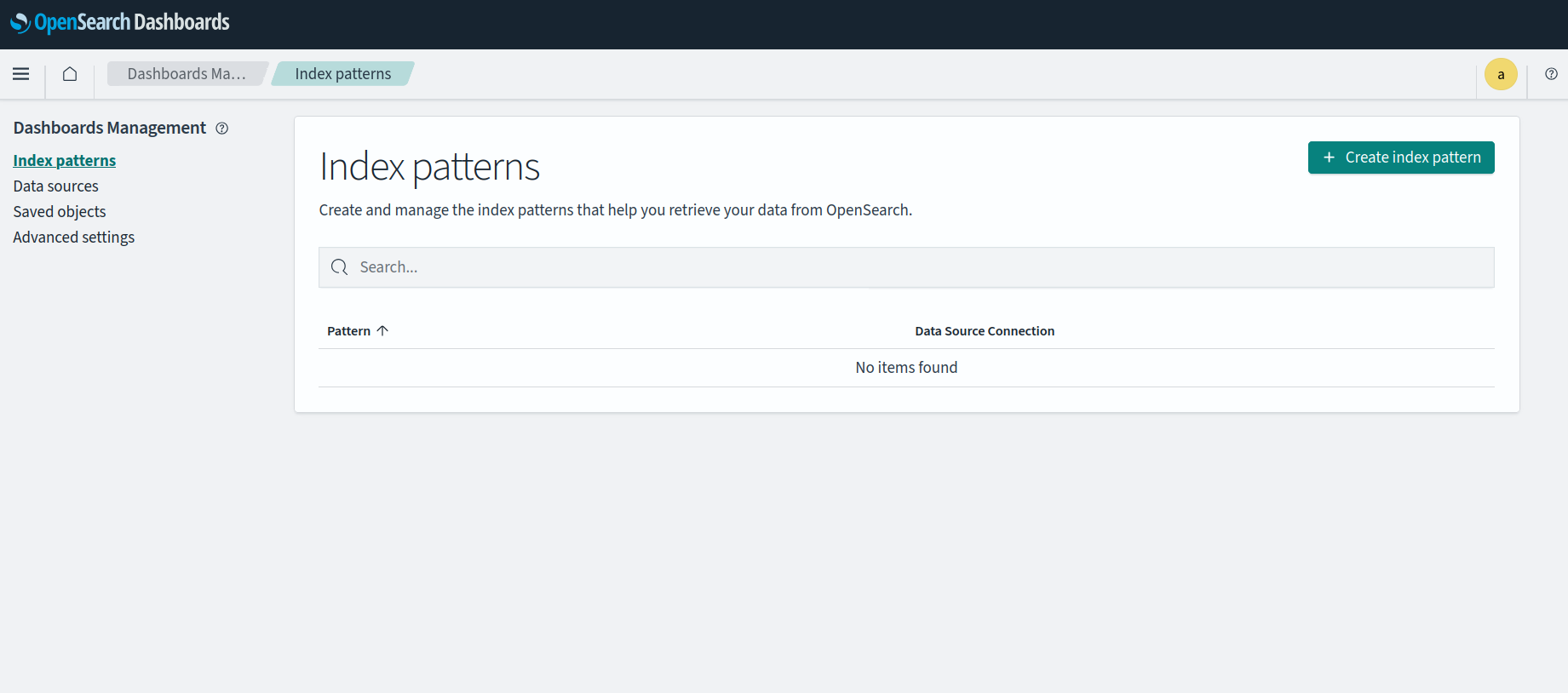

Once you have logged in, navigate to Dashboards Management->Index patterns and create the index patterns jaeger-service* and jaeger-span*. See the screenshot below:

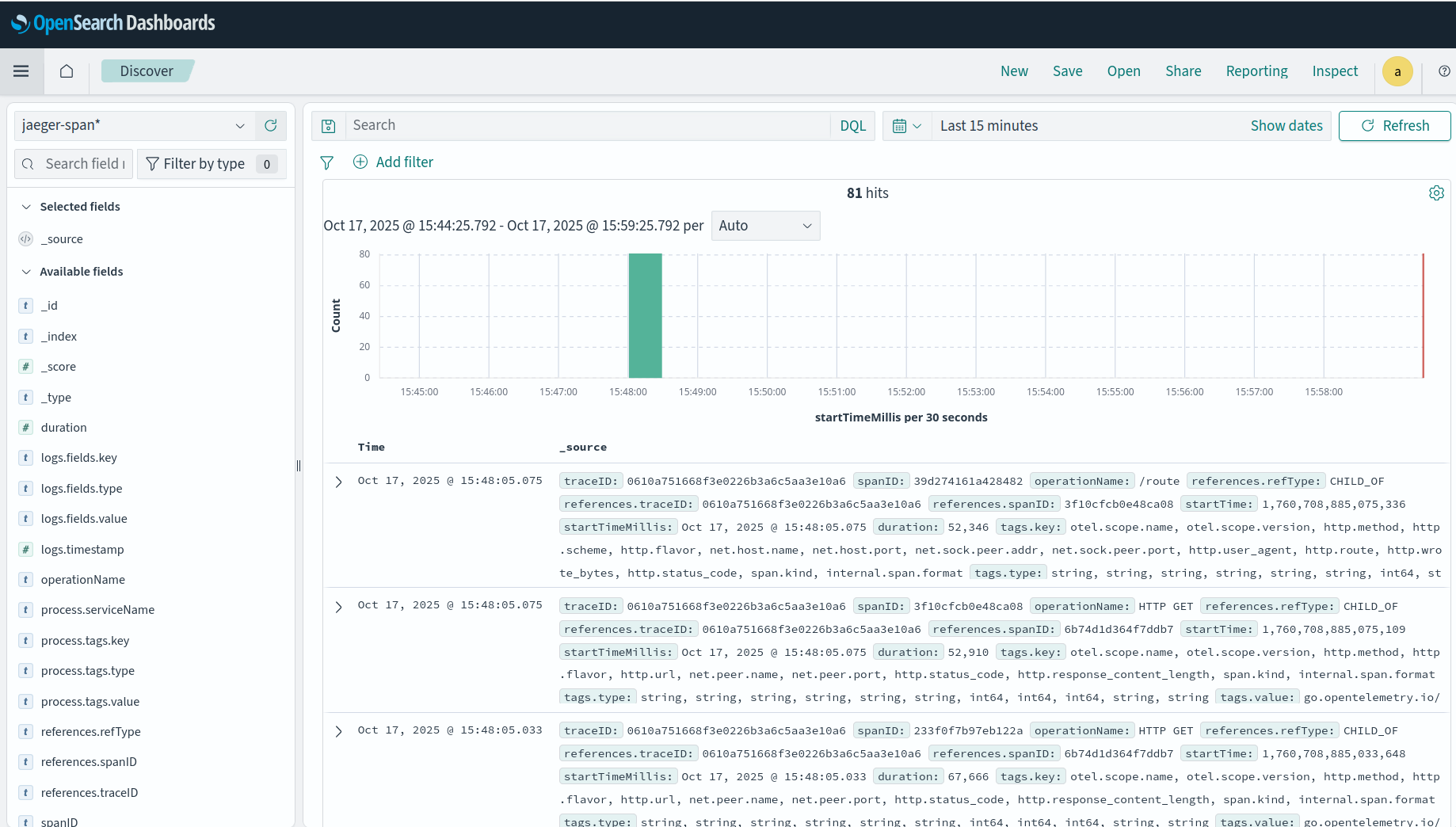

Afterwards, you can go to the Discover page and select the jaeger-span* index pattern to view the traces. See the screenshot below:
When you have finished testing things out, you can remove the demo application:
kubectl delete deployment -n jaeger hotrod
kubectl delete service -n jaeger hotrod-svc
